4. Shared pages

Both technical and scientific validations include the station map and data availability pages.

4.1. Station map page

_images/Screenshot_StaMap.png

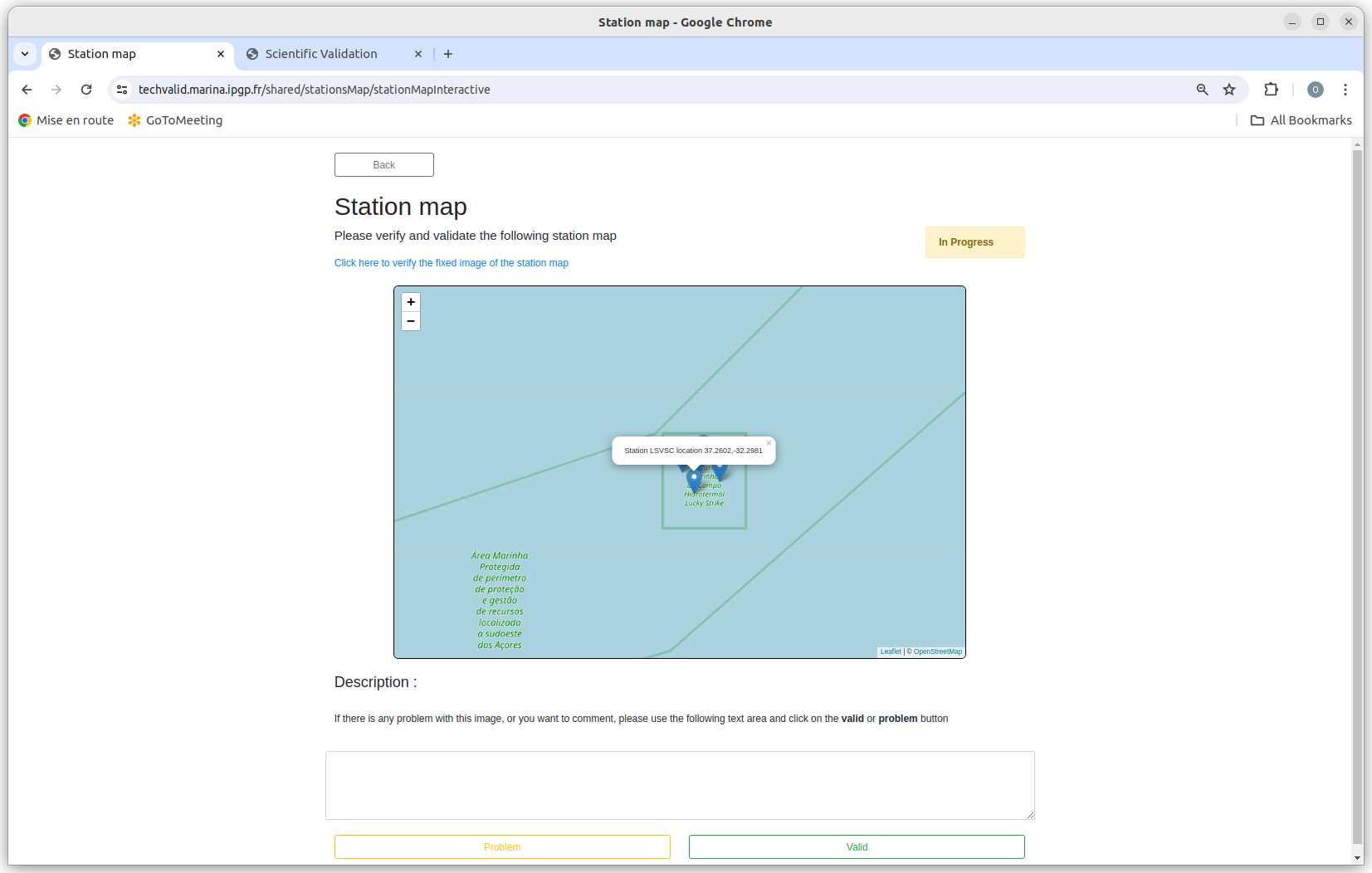

Fig. 4.1.1 Station map page

This page contains a map showing the locations of all stations related to the current campaign. You can zoom in on the stations interactively, to verify that the subnetwork geometry is what you expected. As this is an image page, you can find a text area, valid and problem buttons, and back button. But there is no next button, because there is only one station map page.

4.2. Data availability page

_images/Screenshot_DtAv.png

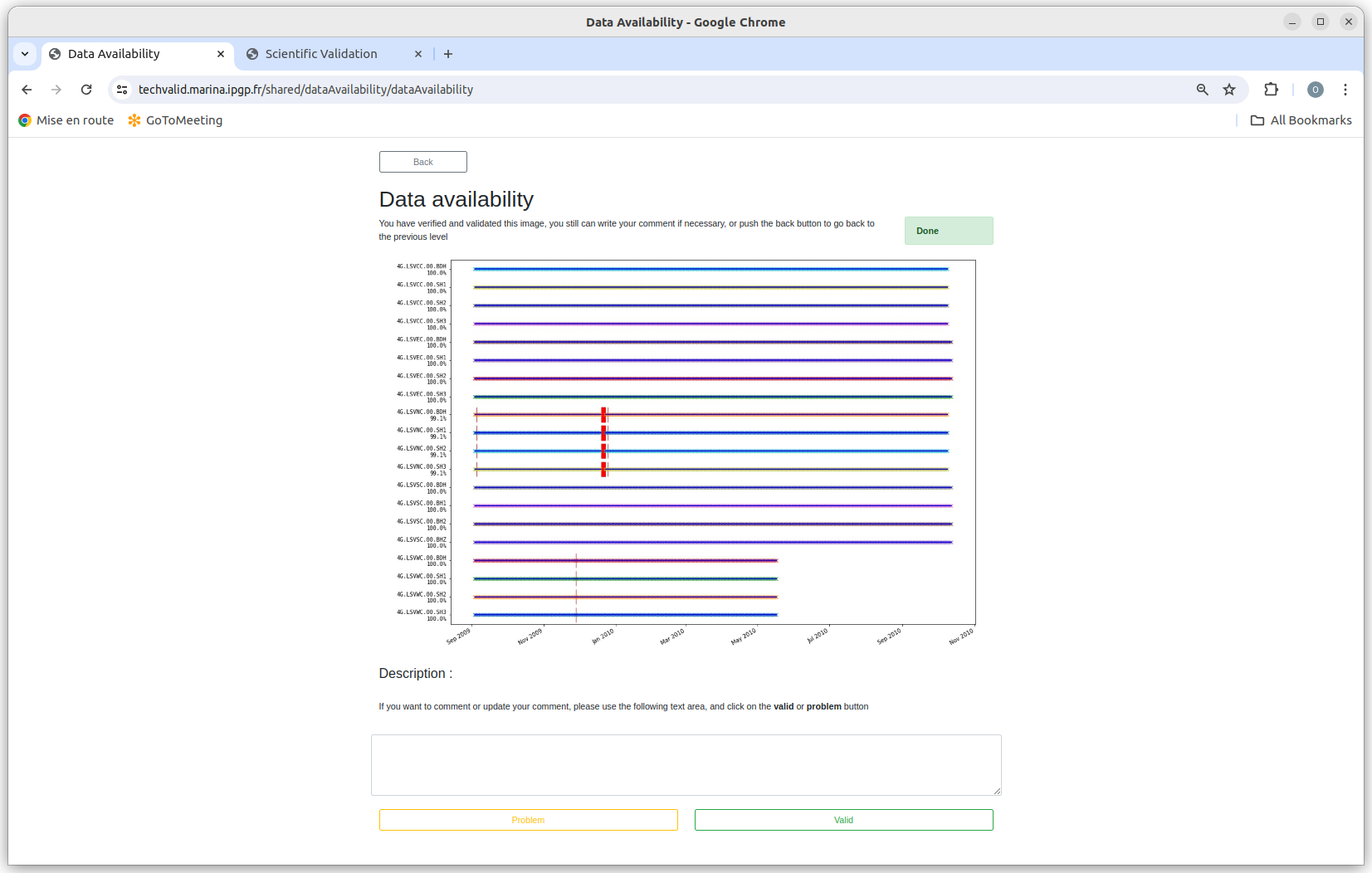

Fig. 4.2.1 Data availability page

The Data Availability page (Fig. 4.2.1) shows the availability of data of all stations. We can see that station LSVNC has some short gaps in late December 2009 and that station LSVWC is lacking data from mid-May 20210 forward. These are probably irresolvable problems but the Facility auditor could check to be sure that there were no oversights in data extraction, and the Scientific auditor could contact the faciltiy to verify that this check was performed.

There are back, valid and problem buttons, but no next button (only one page of data availability). You can also find a text area for comments.
